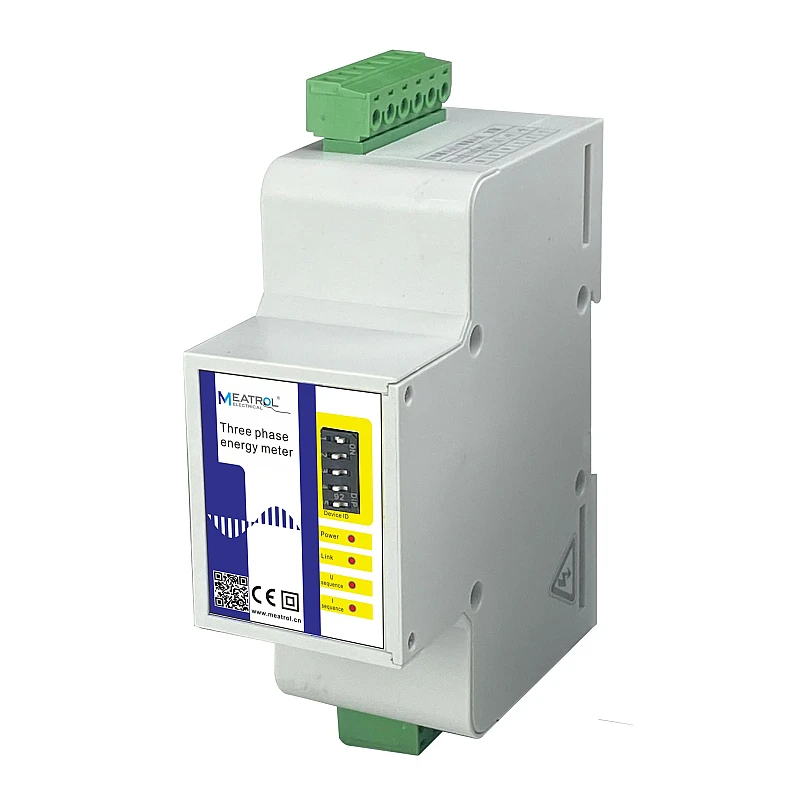

Μετρητής ενέργειας ράγας Ψηφιακός 3Φ DIN-RAILMulti-circuit Smart Energy meter ME131M2

Μετρητής ενέργειας ράγας Ψηφιακός 3Φ DIN-RAILMulti-circuit Smart Energy meter ME131M2

Χαρακτηριστικά:

Multi-circuit Smart Energy meter--DIN-RAIL-Communication: MODBUS-RS485

-Power supply: 220V AC (95-265VAC) (Integrated power supply for master meter and submeter)

-Harmonic:50 times-Without recorder-6 Tariff

-One electromagnetic relay output, Optocoupler isolation（5kVrms）input-Sensor: Rogowski coil and 333mV Cts with VT up to 500kV-Rated current:10A,100A,600A,1000A,3000A,6000A(could be any value)

-Rated coil ratio:50mV/kA@50Hz, 85mV/kA@50Hz 100mV/kA@50Hz or 333mV/kA(0-634mV AC)

-Accuracy: class 0.5S

-Measurement : Current,Voltage,Active/Reactive/Apparent Power,Energy,Harmonic,Power factor,Demand,Max.&Min,Angle,Unbalance, etc.
