Εύκαμπτος αισθητήρας ρεύματος 3Φ MINI FlexibleRogowski coil fixed with cable ties MRC-24 STP

Εύκαμπτος αισθητήρας ρεύματος 3Φ MINI FlexibleRogowski coil fixed with cable ties MRC-24 STP

Χαρακτηριστικά:

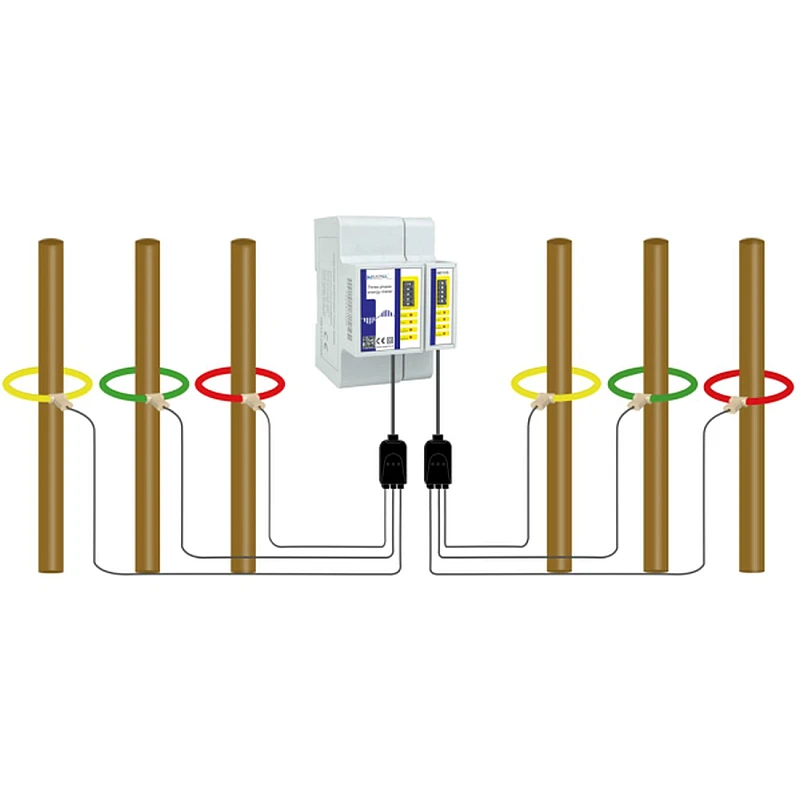

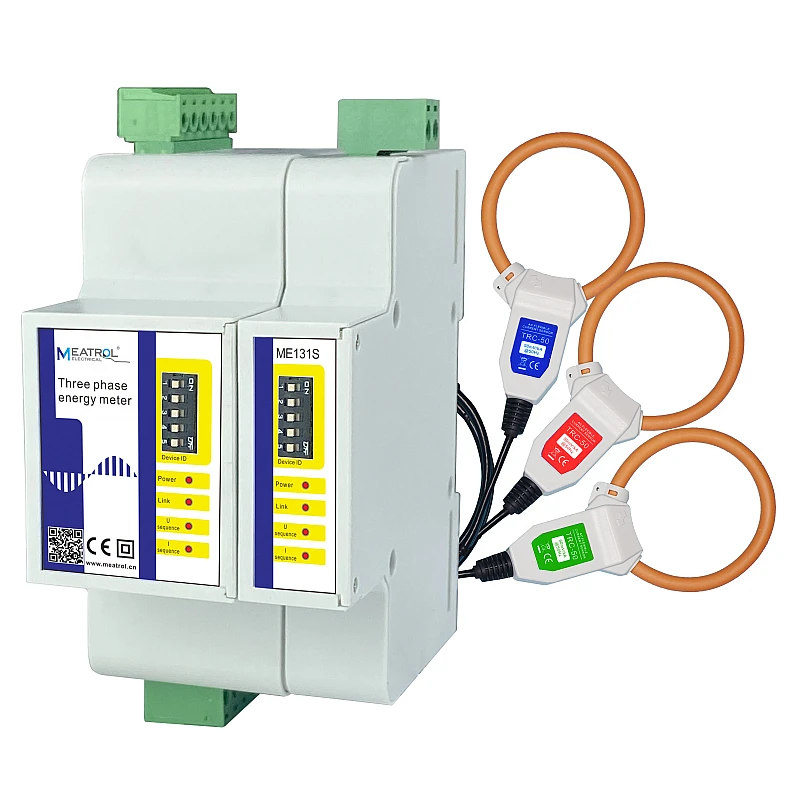

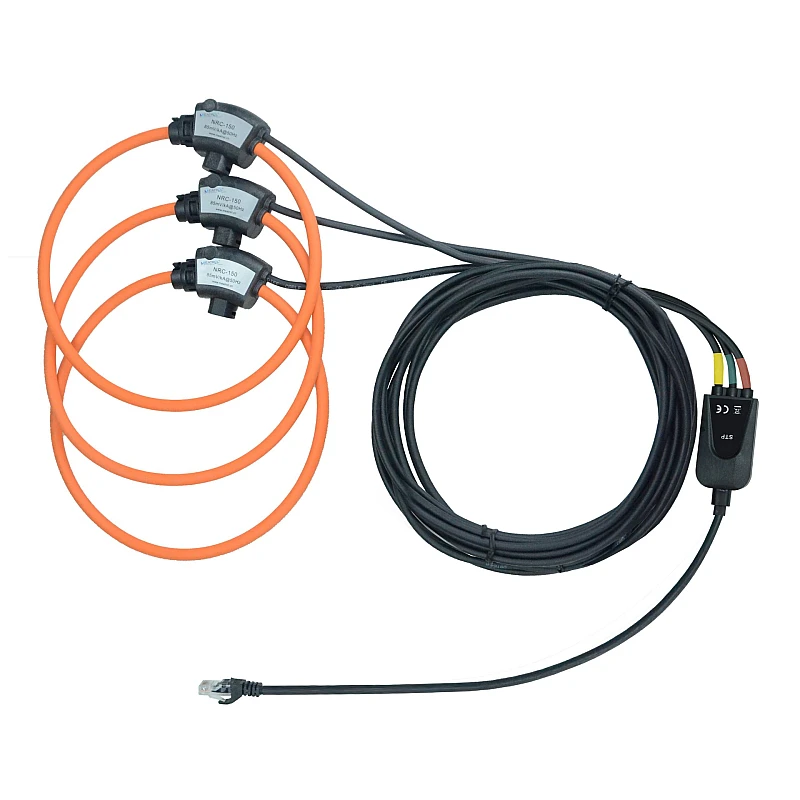

Three Rogowski coils connected to a RJ12 plug, can easily be connected to meters like the ME131

The MRC series is a new generation of flexible Rogowski coil (Rogowski® coil) current sensor, which are especially suitable for measuring in combination with portable devices. MRC coils have different sizes to cope with different conductors.
These coils can be easily installed, especially in areas with limited space, unlike large, cumbersome CTs (Current transformers)
It can be installed by opening up the coil, and without the need to switch off the electricity or disconnecting any wires.
The new generation of MRC coil strengthens the shielding layer and greatly reduces the influence of external magnetic fields;

it can be directly connected to our rail-mounted and panel-type meters.

-Section :6mm-Reference Rated current:300A

-Cable length: 2 meters-RJ12 cable length: 15cm

-Calibrated Accuracy:±0.5%(temperature drift:300ppm/C)

-Ratio:50mV/kA@50Hz -linearity:0.2%(from 3% to 100% of rated )

-Position error:±1%3 in 1 Rogowski coil with STP and RJ12
