- Διαθεσιμότητα: Διαθέσιμο από 1-3 ημέρες
- Κατασκευαστής: Xiaomi
- Κωδικός: 6932849438758

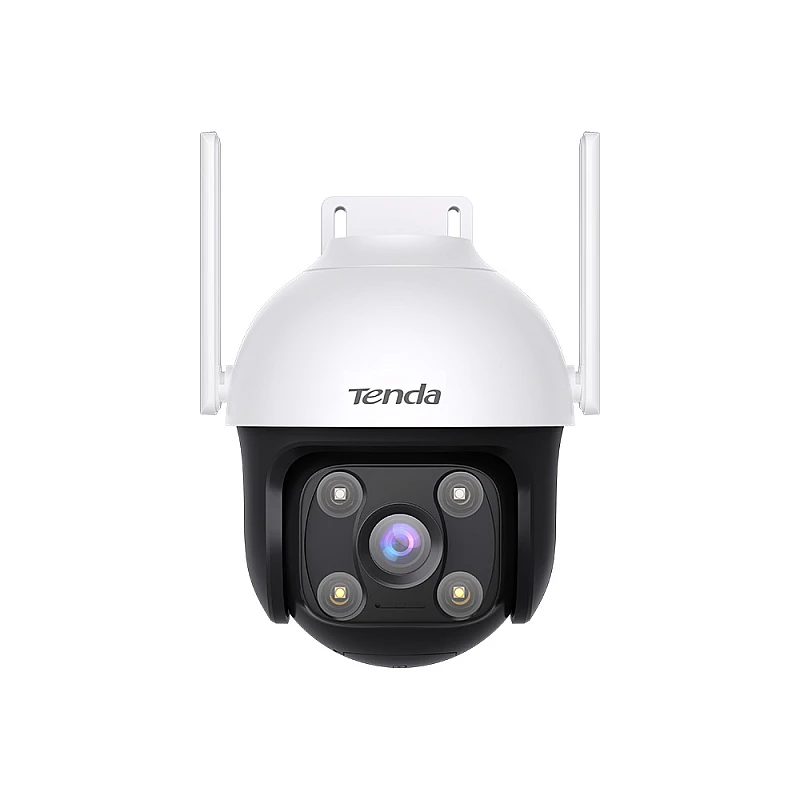

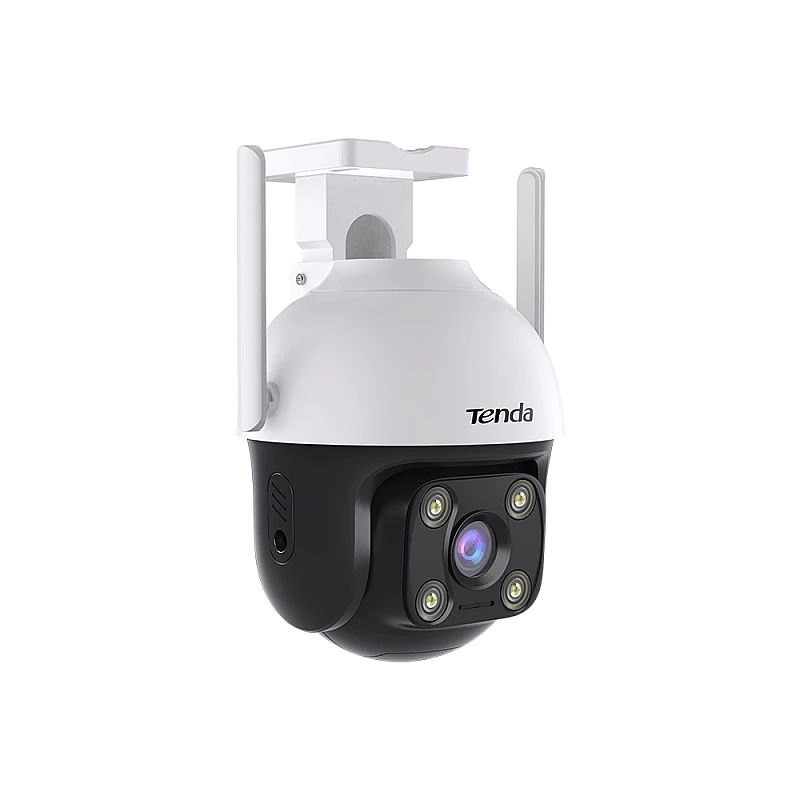

Tenda CH7-WCA IP Κάμερα Παρακολούθησης Wi-Fi Full HD+ 4MP Αδιάβροχη
360° οπτική κάλυψη
Νυκτερινή όραση πλήρους χρώματος
Βίντεο ανάλυσης 4MP
Δίδρομη ομιλία πλήρους duplex
Ανίχνευση ανθρώπου
Λειτουργίες συναγερμού ήχου και φωτός
Το προϊόν χρησιμοποιείται κυρίως για σενάρια εξωτερικής παρακολούθησης, όπως αυλές, αγροκτήματα και καταστήματα. Οι χρήστες μπορούν να έχουν πρόσβαση στο βίντεο μέσω ασύρματης ή ενσύρματης σύνδεσης στο Διαδίκτυο.
Κατασκευαστής
Κάμερες Παρακολούθησης Tenda
CH7-WCAV1.1 Quick Installation Guide(27 Languages)
Home Security / CH7-WCA v1.1
The Outdoor Wi-Fi Pan/Tilt Camera CH7-WCA, is a high-performance outdoor surveillance camera that integrates 360° visual coverage,
Full-Color night vision,4MP resolution video, full-duplex two-way audio, human detection, vehicle detection, sound and light alarm functions.
The product is mostly used for outdoor monitoring scenarios such as courtyard, farms and shops, etc.
The users can access the video via wireless or wired connection to the Internet.
Image Sensor 1/3 Progressive Scan CMOS sensor
Day and Night ICR type
Bracket Angle Adjustment /
Focal Length 4 mm
Aperture F1.6
FOV Horizontal FOV: 83°, Vertical FOV: 44°, Diagonal FOV: 98.6°
Supplementary Light 2 IR Lights, 2 Spotlights
Supplementary Light Distance Up to 30 m/100 ft (depending on environment)
IR Wavelength 850nm
Night Vision Mode Smart Mode, Full Color Mode, Black & White Mode
Video Encoding Format H.265, H.264
Main Stream Resolution 2560 ×1440, 2304 ×1296, 1920 × 1080, 1280 × 720
Sub Stream Resolution 640 × 360, 352 × 288
Frame Rate 1-30fps, Default 20fps
Bit Rate 512kbps -- 4096kbps
Bit Rate Control CBR,VBR
Audio Encoding Format G.711A, G.711U, AAC
Audio Sampling Rate 8 kHz
Audio Communication Two-way Audio, Voice Input
Image Enhancement DWDR, BLC, HLC, 3D DNR
Privacy Mask 4 Areas
Ethernet Port 1 RJ45, 10Mbps/100Mbps auto-negotiation Ethernet port
ONVIF Support
Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, ARP, WebSockets
Web Browser Plug-in free live view: Chrome, Edge, Opera
Pan Movement Range 0°--355°
Tilt Movement Range 0°--90°
Preset 6
Patrol Panoramic Patrol, Preset Patrol
Antenna Dual external antennas
Wireless Standard IEEE 802.11 b/g/n
Transmission Rate Up to 300 Mbps
Channel Width 20/40 MHz
Modulation DSSS/OFDM
Frequency Band 2.4GHz: 2412MHz-2472MHz(CH1-CH13)
Transmit Power 2.4GHz: <0.092W(EIRP)
Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Smart Detection Motion Detection, Tempering Detection, Human Detection, Vehicle Detection
Smart Linkage Sound&light Alert, Human Tracking
DIY Audio 3 Customized Audios
Audio Input Built-in MIC
Audio Output Built-in Speaker
Storage Built-in Micro SD Card Slot, Up to 256 GB
Reset Button Support
LED Indicator Dual Color (red & blue) LED Indicator
Power 12 V DC, 1A, Ø5.5mm&Ø2.1mm Power Plug
Material Plastic
Smart Integration Amazon Alexa
Product Dimension 138 mm x 120 mm x 187 mm (5.4 × 4.7 × 7.4)
Package Dimension 167 mm x 131 mm x 251 mm (6.6 × 5.2 × 9.9)
Product Weight 426g (0.94lb)
With Package Weight 840g (1.85lb)
Protection Level IP65
Installation Method Wall Mounting, Ceiling Mounting, Pole Mounting
Certification CE, RoHS, FCC, RCM, UKCA
Temperature Operating Temperature: -30°C ~ 60°C (-22°F ~ 140°F)
Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F)
Humidity Operating Humidity: 10% ~ 95% RH (non-condensing)
Storage Humidity: 3% ~ 95% RH (non-condensing)
Package Contents Camera
Power Adapter (cord length: 3m)
Installation Template
Mounting Bracket
Mounting Accessories Kit
Waterproof Kit
Quick Installation Guide
