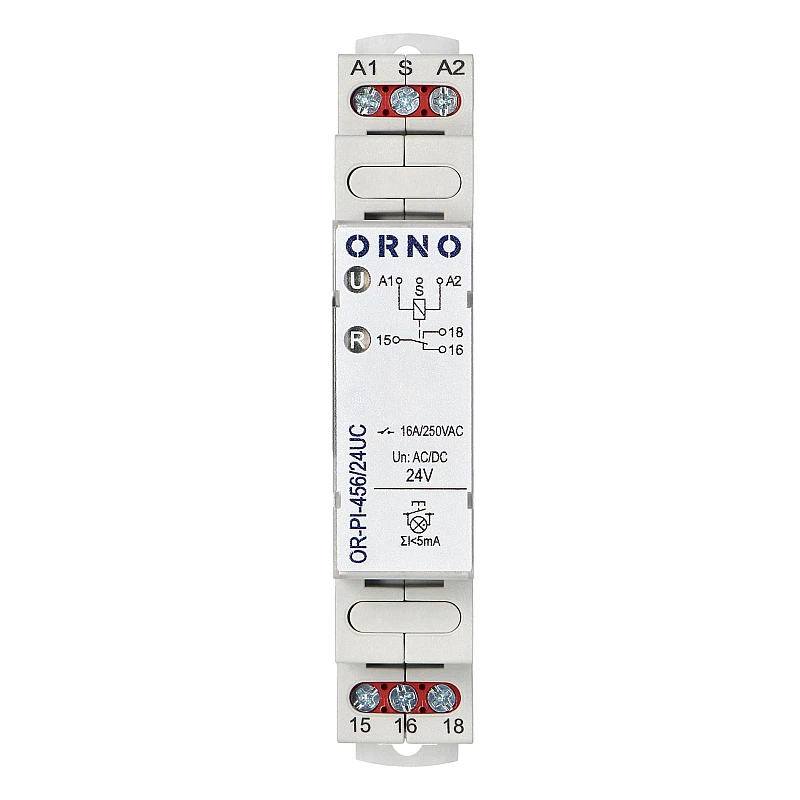

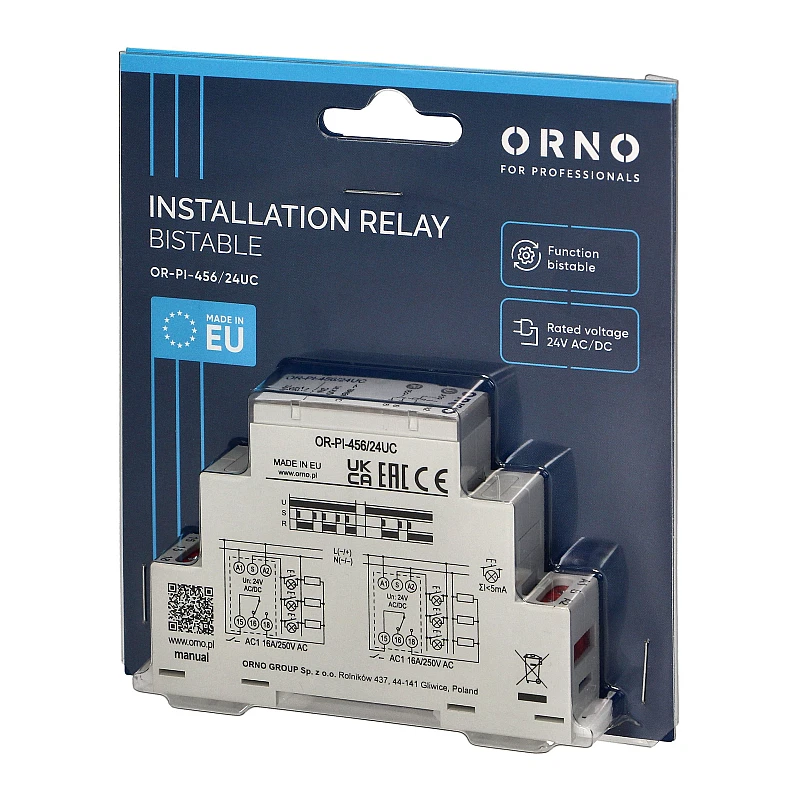

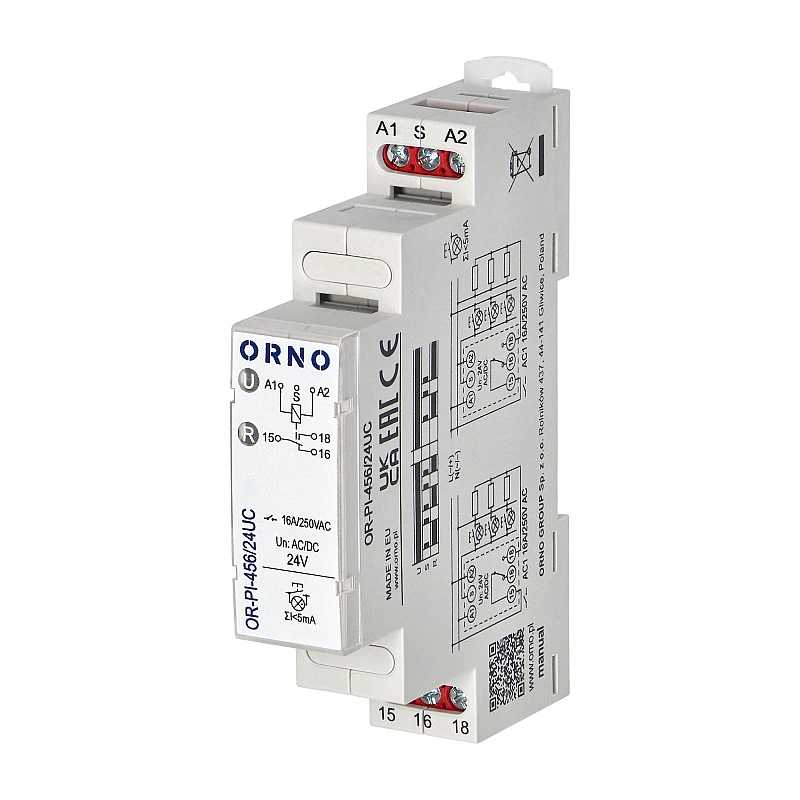

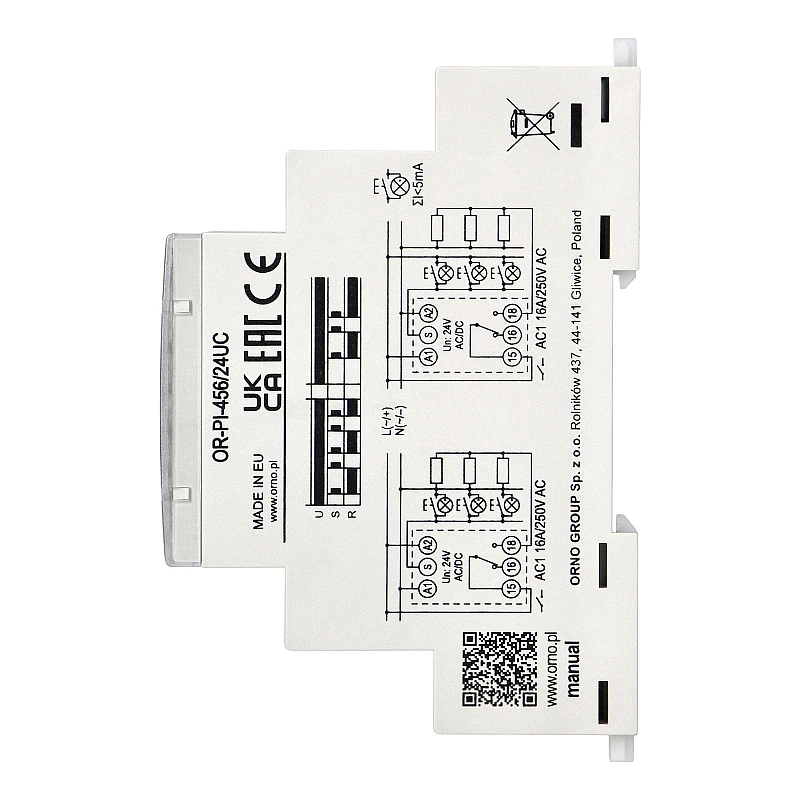

Ρελέ ράγας 24 VAC / DC, 16A Installation bistable relay OR-PI-456/24UC Orno

Ρελέ ράγας 24 VAC / DC, 16A Installation bistable relay OR-PI-456/24UC Orno

Χαρακτηριστικά:

·         General information:

·         Storage temperature:     from -40°C to +70°C

·         Number and type of contacts:    1P

·         Contacts material:            AgSnO2

·         Rated load AC1: 16 A / 250 V AC

·         Rated load DC1: 16 A / 24 V DC

·         Degree of protection (IP):             20

·         Maximum switching capacity in category AC1:     4000 VA

·         Contact resistance:          ≤ 100 mΩ

·         Maximum switching frequency: 600 cykli/h

·         Nominal voltage:              230 V

·         Operating voltage range:               0,9 - 1,1 Un

·         Overvoltage category:    III

·         Dimensions - depth:        90 mm

·         Dimensions - width:        17.5 mm

·         Case flammability standard UL94:             V0

·         Switching life AC1:           > 0,5 x 10^5

·         Dimensions - height:       64.6 mm

·         Working temperature:    -20℃~+50℃

·         Relative humidity:            do 85%

·         imapct resistance:            15 g

·         vibration resistance:        0,35 mm DA

·         Net weight:         65 g
