ORNO MC4 Connector Σετ Connector διακλάδωσης για φωτοβολταϊκά OR-PV-13610
13,29€
23,90€
- Διαθεσιμότητα: Διαθέσιμο από 1-3 ημέρες
- Κατασκευαστής: Orno
- Κωδικός: 5908254804380

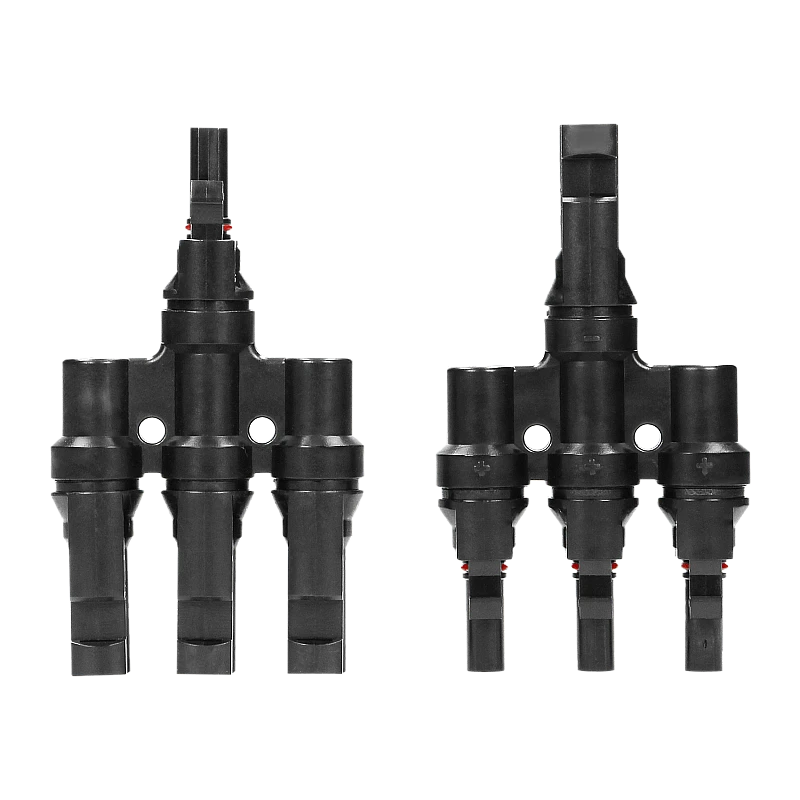

ORNO 3xMC4 Connector Σετ Connector διακλάδωσης για φωτοβολταϊκά OR-PV-13610
Σετ Connector διακλάδωσης Y για φωτοβολταϊκά . Το σετ περιλαμβάνει 1x Αρσενικό σε 3x θηλυκά και 1x Θηλυκό σε 3x Αρσενικά με connectors MC4.
Τεχνικά Χαρακτηριστικά:
- Αδιαβροχοποίηση IP67
- Μέγιστο ρεύμα 30A.
- Μέγιστη τάση 1000V.
- Για καλώδια διατομής 1.5-6mm²
Σχετικά προϊόντα :
3xMC4 splitter (T type) for photovoltaic panels helps to connect the panels in a professional, safe and fast way. This product is compatible with PV wires: 1.5-6mm². Long service life of the device is guaranteed by high-quality finishing. Protection level IP67 ensures water and dust resistance. These splitters also present resistance against UV rays and harsh weather conditions.
General Information
Connector type: | 3xMC4 ,Typ T |
Number of wires: | 3 |
Wire cross-section: | 1,5-6mm2 |
Rated voltage: | 1000VDC |
Current [A]: | 30 |
Contact material: | Tinned copper |
Materiał : | PPO |
Flammability class of UL94 enclosures: | V0 |
UV resistance: | yes |
Protection rating: | IP67 |
Compliance with the standard: | IEC 60068-2-52 |
Outdoor temperature range ['C]: | -40 - 85 |
Maximum contact temperature ['C]: | 105 |
Insulation voltage [kV]: | 6 |
Contact resistance [mOhm]: | 0.5 |
Dimensions (width x height x depth [mm]): | 107 / 63 / 18 |
Weight [g]: | 144 |
Type of connection: | clamping |
