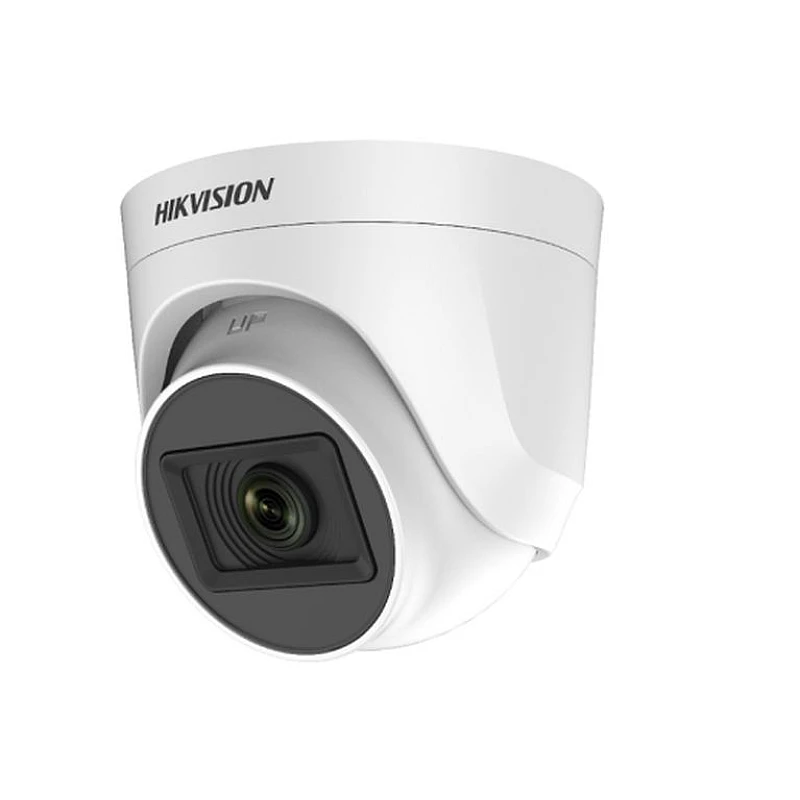

HIKVISION DS-2CE76H0T-ITPF Κάμερα 5MP Dome 4 in 1 Φακός 2.4mm TVI/CVI/AHD/CVBS IP67 Lens IR 20m

HIKVISION DS-2CE76H0T-ITPF Κάμερα 5MP Dome 4 in 1 Φακός 2.4mm TVI/CVI/AHD/CVBS IP67 Lens IR 20m

Κάμερα Πλαστική Dome  εσωτερικού χώρου, 4in1 5MP, με επιλεγόμενη έξοδο HDTVI/CVI/AHD/CVBS, σταθερό ευρυγώνιο φακό 2.4 mm (γωνία θέασης 110°)

 Με υπέρυθρο φωτισμό Smart IR και εμβέλειας ως 20 m

Χαρακτηριστικά:

Camera

• Image Sensor5 MP CMOS image sensor
• Max. Resolution 2560 (H) × 1944 (V)
• Min. Illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR

Shutter Time

• PAL: 1/25 s to 1/50, 000 s
• NTSC: 1/30 s to 1/50, 000 s
• Day & Night ICR
• Angle Adjustment Pan: 0 to 360°, Tilt: 0 to 75°, Rotation 0 to 360°
• Signal System PAL/NTSC
• Lens
• Lens Type 2.4 mm, 2.8 mm, 3.6 mm, 6 mm fixed lens

Focal Length & FOV

• 2.4 mm, horizontal FOV: 110°, vertical FOV: 81°, diagonal FOV:137°
• 2.8 mm, horizontal FOV: 85°, vertical FOV: 63°, diagonal FOV:110°
• 3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV:105°
• 6 mm, horizontal FOV: 57°, vertical FOV: 43°, diagonal FOV:72°

Lens Mount M12


• Image Parameters Switch STD/HIGH-SAT
• Image Settings Brightness, Sharpness, DNR, Mirror, Smart IR

Frame Rate

• TVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fps
• AHD: 5M@20fps, 4M@30fps, 4M@25fps
• CVI: 4M@30fps, 4M@25fps
• CVBS: PAL/NTSC
• Day/Night Mode Auto/Color/BW (Black and White)
• Wide Dynamic Range (WDR) Digital WDR
• Image Enhancement BLC, HLC
• White Balance ATW/MANUAL
• AGC Support
• Interface
• Video Output Switchable TVI/AHD/CVI/CVBS
• General
• Material Plastic
• Dimension Φ 84.6 mm × 78.9 mm (Φ 3.33" × 3.11")
• Approx. 143 g (0.32 lb.)
• Operating Condition -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
• Communication HIKVISION-C
• Language English
• Power Supply 12 VDC ±25>
• Consumption Max. 4.3 W
• IR Range Up to 20m
